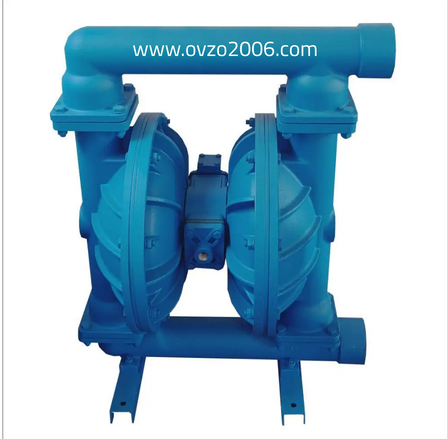

OV-DFC311 Aodd Pumps Aluminum Fit GRACO Husky 2150
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
It is not implied that any part listed is the product of these manufacturers.
Repair Parts
| Part No. | Description |
|---|---|
| D0F300 | 2-inch 316 Stainless Steel Seat Kit |
| D0F010 | 2-inch PTFE Check Ball Kit |
| D0F001 | PTFE Diaphragm Kit for 2-inch Pump |
| 236273 | Air Valve Repair Kit |
| D0F311 | Complete Fluid Repair Kit |
| Air Inlet Size (in) | 1/2 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | PTFE |
| Centre Section Material | Aluminium |
| Compatible Material | Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water – Wastewater Transfer |
| Connection Type | Threaded |
| Diaphragm compatible material | PTFE |
| Diaphragm Material | PTFE/EPDM 2-Piece |
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Thread Type | BSPT |
| Fluid Outlet Size (in) | 2 |
| Fluid Outlet Thread Type | BSPT |
| Fluid Section Material | Aluminium |
| Manifold Configuration | End Port |
| Material | Aluminium |
| Maximum Air Consumption (SCFM) | 175 |
| Maximum Air Pressure (MPa) | 0.827 |
| Maximum Air Pressure (psi) | 120 |
| Maximum Cycle Rate (CPM) | 145 |
| Maximum Flow Rate (GPM) | 150 |
| Maximum Fluid Pressure (MPa) | 0.827 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Operating Temperature (°F) | 200 |
| Maximum Solid Size (in) | 0.25 |
| Model | Husky |
| Power Source | Air |
| Seat Material | Stainless Steel |
| Series | 2150 |
OV-66612B-244-C AODD PUMPS Metallic Diaphragm Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
It is not implied that any part listed is the product of these manufacturers.
| Max. delivery rate: | 133 l/min. |
| Ratio: | 1:1 |
| Max. Operating Pressure: | 8.3 bar |
| Max. inlet pressure: | 0,69 bar |
| Displacement / cycle @ 6.9 bar: | 0,60 litres |
| Suction and discharge connection: | 1″ GNP F |
| Compressed air connection: | ¼” NPTF |
| material of the medium: | Stainless steel |
| Material air motor: | Aluminium |
| Material Hardware: | Stainless steel |
| Diaphragm material: | Ptfe |
| Material ball: | Ptfe |
| Material ball seat: | Stainless steel |
| Max. Solids passage: | 3.2 mm |
| Silencer: | mounted |
| Sound level: | 64.5 db(A) |
| Weight: | 16,35 kg |
| Temperature range: | +4° till +107° C |
| ATEX certified: | ATEX – Group II 2GD X |
| Air motor service kit available in the store: | 637118-C |
| Service kit fluid part available in the store: | 637119-44-C |
OV-666053-344 Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
OV-666053-0D2 Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Fluid Cap & Manifold Material | Polypropylene |
|---|---|
| Seat Material | Duck Bill |
| Ball Material | Nitrile |
| Diaphragm Material | Nitrile |
| Pump Type | Diaphragm Pump |
| Max Air Inlet Pressure | 6.9 bar (100 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 6.9 bar (100 psi) |
| Air Consumption | 1 cfm/gallon (approx) |
| Max Flow Rate(ball) | 13 gpm (49.2 lpm) |
| Max Solid Size | 3/32″ (2.4 mm) |
| Max Temperature Limits (F) | -40 to 350 ° |
| Max Temperature Limits (C) | -40 to 177 ° |
| Size | 0.5″ (12.7 mm) |
| Ratio | 1:1 |
| Material Inlet/Outlet (female) | 1/2 – 14 NPTF |
| Air Inlet (Female) | 1/4 – 18 NPTF |
| Standard | Internal |
| Optional (female) | 3/8 – 18 NPTF |
| Noise Level @ 70 psi, 60 cpm | 71.1 db(A) |
| Max Flow Rate(duckbill) | 10 gpm (37.9 lpm) |
| Muffler | Integral, Included |
| Maximum Dry Suction Lift | 15 ft (4.6 m) |
| Displacement per cycle(ball) | 0.04 gpm (0.15 lpm) |
| Displacement per cycle(duckbill)) | 0.032 gpm (0.12 lpm) |

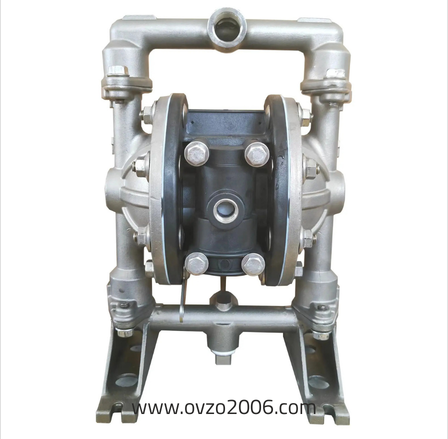

OV-PD05R-BAS-STT-B Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Center Section Material | Polypropylene |
|---|---|
| Connection Type | BSP |
| Fluid Caps/Manifold Material | Aluminum |
| Hardware Material | Stainless Steel |
| Seat Material | 316 Stainless Steel |
| Ball Material | PTFE |
| Diaphragm Material | PTFE/Santoprene |
| Pump Type | Diaphragm Pump |
| Max Air Inlet Pressure | 6.9 bar (100 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 6.9 bar (100 psi) |
| Air Consumption @ 40 psi | 1 cfm/gallon (approx.) |
| Max Flow Rate | 13 gpm (49.2 lpm) |
| Displacement / Cycle @ 100 p.s.i.g | 0.039 gal (0.15 lit) |
| Max Solid Size | 3/32″ (2.4 mm) |
| Max Temperature Limits (F) | -40° to 350° |
| Max Temperature Limits (C) | -40° to 177° |
| Noise Level @ 70 psi, 60 cpm | 71.1 db |
| Size | 0.5″ (12.7 mm) |
| Ratio | 1:1 |
| Maximum dry suction | 15 ft (4.6 m) |
| Muffler | Integral, Included |
OV-66605k-444 Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Fluid Cap & Manifold Material | PVDF |
|---|---|
| Seat Material | PVDF |
| Ball Material | PTFE |
| Diaphragm Material | PTFE / Santoprene |
| Pump Type | Diaphragm Pump |
| Max Air Inlet Pressure | 6.9 bar (100 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 6.9 bar (100 psi) |
| Air Consumption | 1 cfm/gallon (approx) |
| Max Flow Rate(ball) | 13 gpm (49.2 lpm) |
| Max Solid Size | 3/32″ (2.4 mm) |
| Max Temperature Limits (F) | -40 to 350 ° |
| Max Temperature Limits (C) | -40 to 177 ° |
| Size | 0.5″ (12.7 mm) |
| Ratio | 1:1 |
| Material Inlet/Outlet (female) | 1/2 – 14 NPTF |
| Air Inlet (Female) | 1/4 – 18 NPTF |
| Standard | Internal |
| Optional (female) | 3/8 – 18 NPTF |
| Noise Level @ 70 psi, 60 cpm | 71.1 db(A) |
| Max Flow Rate(duckbill) | 0.032 gpm (0.12 lpm) |
| Muffler | Integral, Included |
| Maximum Dry Suction Lift | 15 ft (4.6 m) |
| Displacement per cycle(ball) | 0.04 gpm (0.15 lpm) |
| Displacement per cycle(duckbill)) | 0.032 gpm (0.12 lpm) |

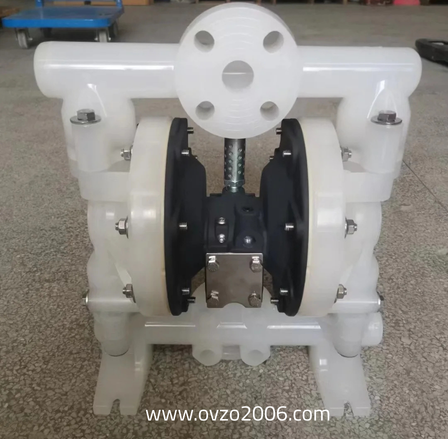

OV-6661AF-344-C Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Fluid Cap/Manifold Material | Colorless polypropylene Flange (1-piece manifold) |
|---|---|
| Seat Material | Polypropylene |
| Ball Material | PTFE |
| Diaphragm Material | PTFE/Santoprene |
| Pump Type | Non-Metallic, Air Operated, Double Diaphragm |
| Material | Aluminum |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 47 gpm (177.9 lpm) |
| Displacement/Cycle @ 100 psig (Standard Diaphragm) | 0.17 gal (.64 lit) |
| Displacement/Cycle @ 100 psig (Composite PTFE Diaphragm) | 0.14 gal (.525 lit) |
| Max Solid Size | 1/8″ (3.2 mm) |
| Max Temperature Limits (F) | 10° to 200° |
| Max Temperature Limits (C) | -12° to 93° |
| Noise Level @ 70 psi, 60 cpm | 64.5 dB(A) |
| Size | 1″ (25.4 mm) |

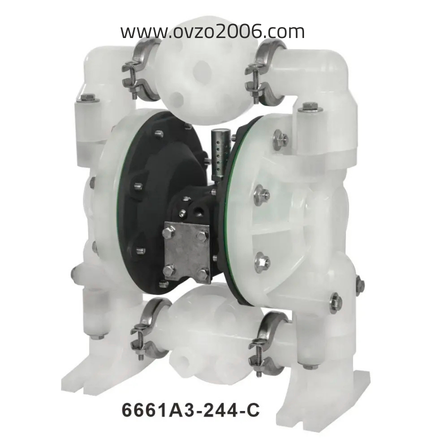

OV-6661A3-244-C Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Fluid Cap/Manifold Material | Colorless Polypropylene Flange (3-piece manifold) |
|---|---|
| Seat Material | 316 STAINLESS STEEL |
| Ball Material | PTFE |
| Diaphragm Material | PTFE/Santoprene |
| Pump Type | Diaphragm Pump |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 47 gpm (177.9 lpm) |
| Displacement/Cycle @ 100 psig (Standard Diaphragm) | 0.17 gal (.64 lit) |
| Displacement/Cycle @ 100 psig (Composite PTFE Diaphragm) | 0.14 gal (.525 lit) |
| Max Solid Size | 1/8″ (3.2 mm) |
| Max Temperature Limits (F) | 10° to 200° |
| Max Temperature Limits (C) | -12° to 93° |
| Noise Level @ 70 psi, 60 cpm | 64.5 dB(A) |
| Size | 1″ (25.4 mm) |
OV-6661A3-2EB-C Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Fluid Cap/Manifold Material | Colorless Polypropylene Flange (3-piece manifold) |
|---|---|
| Seat Material | 316 Stainless Steel |
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Pump Type | Non-Metallic, Air Operated, Double Diaphragm |
| Material | Aluminum |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 47 gpm (177.9 lpm) |
| Displacement/Cycle @ 100 psig (Standard Diaphragm) | 0.17 gal (.64 lit) |
| Displacement/Cycle @ 100 psig (Composite PTFE Diaphragm) | 0.14 gal (.525 lit) |
| Max Solid Size | 1/8″ (3.2 mm) |
| Max Temperature Limits (F) | 10° to 200° |
| Max Temperature Limits (C) | -12° to 93° |
| Noise Level @ 70 psi, 60 cpm | 64.5 dB(A) |
| Size | 1″ (25.4 mm) |
OV-6661T3-2EB-C Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Center Section Material | Aluminum |
|---|---|
| Fluid Cap/Manifold Material | Polypropylene |
| Seat Material | 316 Stainless Steel |
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Pump Type | Diaphragm Pump |
| Material | Aluminum |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 100 gpm (378.5 lpm) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Displacement/Cycle @ 100 psig (Standard Diaphragm) | 0.67 gal (2.54 lit) |
| Displacement/Cycle @ 100 psig (Composite PTFE Diaphragm) | 0.43 gal (1.63 lit) |
| Max Temperature Limits (F) | 10° to 200° |
| Max Temperature Limits (C) | -12° to 93° |
| Noise Level @ 70 psi, 60 cpm | 77.7 db(A) |
| Material Inlet/Outlet | 1-1/2″ ANSI Flange |
| Size | 1.5″ (38.1 mm) |

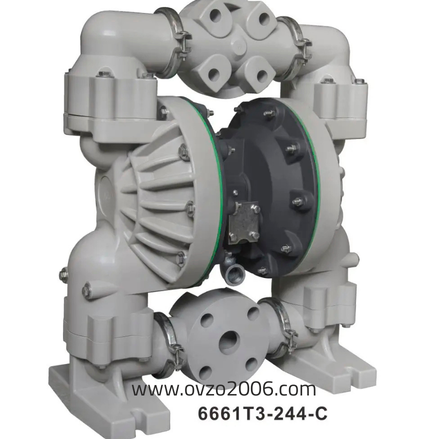

OV-6661T3-244-C Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Center Section Material | Aluminum |
|---|---|
| Fluid Cap/Manifold Material | Polypropylene |
| Seat Material | 316 Stainless Steel |
| Ball Material | PTFE |
| Diaphragm Material | PTFE/Santoprene |
| Pump Type | Diaphragm Pump |
| Material | Aluminum |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 100 gpm (378.5 lpm) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Displacement/Cycle @ 100 psig (Standard Diaphragm) | 0.67 gal (2.54 lit) |
| Displacement/Cycle @ 100 psig (Composite PTFE Diaphragm) | 0.43 gal (1.63 lit) |
| Max Temperature Limits (F) | 10° to 200° |
| Max Temperature Limits (C) | -12° to 93° |
| Noise Level @ 70 psi, 60 cpm | 77.7 db(A) |
| Material Inlet/Outlet | 1-1/2″ ANSI Flange |
| Size | 1.5″ (38.1 mm) |
OV-6662A3-2EB-C Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Center Section Material | Aluminum |
|---|---|
| Fluid Cap & Manifold Material | Polypropylene |
| Seat Material | 316 Stainless Steel |
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Pump Type | Non-Metallic, Air Operated, Double Diaphragm |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Flow Rate | 145 gpm (548.8 lpm) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Max Temperature Limits (F) | 10° to 200° |
| Max Temperature Limits (C) | -120° to 930° |
| Ratio | 1:1 |
| Material Inlet/Outlet | 2″ ANSI Class 150 Flange |
| Air Inlet (female) | 1/2 – 14 NPTF |
| Air Exhaust (female) | 3/4 – 14 NPTF |
| Size | 2″ (51 mm) |
| Noise Level @ 70 psi, 60 cpm | 77.7 db(A) |

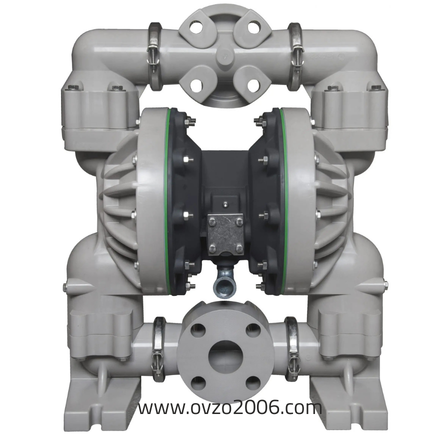

OV-6662A3-244-C Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Center Section Material | Aluminum |
|---|---|
| Fluid Cap & Manifold Material | Polypropylene |
| Seat Material | 316 Stainless Steel |
| Ball Material | PTFE |
| Diaphragm Material | PTFE/Santoprene |
| Pump Type | Non-Metallic, Air Operated, Double Diaphragm |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Flow Rate | 145 gpm (548.8 lpm) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Max Temperature Limits (F) | 10° to 200° |
| Max Temperature Limits (C) | -120° to 930° |
| Ratio | 1:1 |
| Material Inlet/Outlet | 2″ ANSI Class 150 Flange |
| Air Inlet (female) | 1/2 – 14 NPTF |
| Air Exhaust (female) | 3/4 – 14 NPTF |
| Size | 2″ (51 mm) |
| Noise Level @ 70 psi, 60 cpm | 77.7 db(A) |
OV-PD10A-BAP-AAA AODD Pump Fit ARO PD10X-X-X
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
It is not implied that any part listed is the product of these manufacturers.
| Electronic Interface | None |
|---|---|
| Center Section Material | Aluminum |
| Connection Type | BSP |
| Fluid Cap & Manifold Material | Aluminum |
| Hardware Material | Plated Steel |
| Seat Material | Santoprene |
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Pump Type | Metallic, Air Operated, Double Diaphragm |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 52.2 gpm (197.6 lpm) |
| Displacement/Cycle @ 100 psig | 0.232 gal. (0.88 lit.) |
| Max Solid Size | 1/8″ (3.2 mm) |
| Max Temperature Limits (F) | -40° to 350° |
| Max Temperature Limits (C) | -40° to 177° |
| Size | 1″ (25.4 mm) |
| Noise Level @ 70 psi, 60 cpm | 80.6 db(A) |
| Ratio | 1:1 |
| Mounting Dimension | 4″ x 6.25″ (101.6 mm x 158.8 mm) |
| Material Inlet/Outlet | .. |
| Air Inlet (female) | 1/4 – 18 NPT |
| Air Exhaust (female) | 3/4 – 14 NPT |
OV-6662A3-3EB-C Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Center Section Material | Aluminum |
|---|---|
| Fluid Cap & Manifold Material | Polypropylene |
| Seat Material | Polypropylene |
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Pump Type | Non-Metallic, Air Operated, Double Diaphragm |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Flow Rate | 145 gpm (548.8 lpm) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Max Temperature Limits (F) | 10° to 200° |
| Max Temperature Limits (C) | -120° to 930° |
| Ratio | 1:1 |
| Material Inlet/Outlet | 2″ ANSI Class 150 Flange |
| Air Inlet (female) | 1/2 – 14 NPTF |
| Air Exhaust (female) | 3/4 – 14 NPTF |
| Size | 2″ (51 mm) |
| Noise Level @ 70 psi, 60 cpm | 77.7 db(A) |
OV-6661T3-3EB-C Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Center Section Material | Aluminum |
|---|---|
| Fluid Cap/Manifold Material | Polypropylene |
| Seat Material | Polypropylene |
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Pump Type | Diaphragm Pump |
| Material | Aluminum |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 100 gpm (378.5 lpm) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Displacement/Cycle @ 100 psig (Standard Diaphragm) | 0.67 gal (2.54 lit) |
| Displacement/Cycle @ 100 psig (Composite PTFE Diaphragm) | 0.43 gal (1.63 lit) |
| Max Temperature Limits (F) | 10° to 200° |
| Max Temperature Limits (C) | -12° to 93° |
| Noise Level @ 70 psi, 60 cpm | 77.7 db(A) |
| Material Inlet/Outlet | 1-1/2″ ANSI Flange |
| Size | 1.5″ (38.1 mm) |

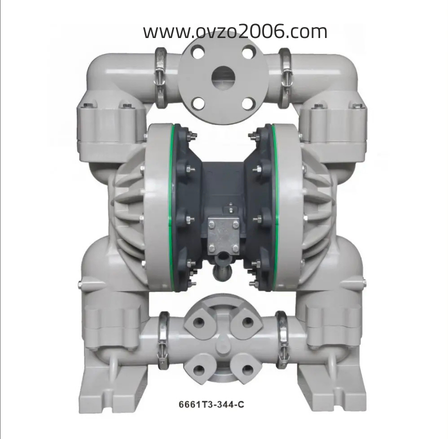

OV-6661T3-344-C Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Center Section Material | Aluminum |
|---|---|
| Fluid Cap/Manifold Material | Polypropylene |
| Seat Material | Polypropylene |
| Ball Material | PTFE |
| Diaphragm Material | PTFE/Santoprene |
| Pump Type | Diaphragm Pump |
| Material | Aluminum |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 100 gpm (378.5 lpm) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Displacement/Cycle @ 100 psig (Standard Diaphragm) | 0.67 gal (2.54 lit) |
| Displacement/Cycle @ 100 psig (Composite PTFE Diaphragm) | 0.43 gal (1.63 lit) |
| Max Temperature Limits (F) | 10° to 200° |
| Max Temperature Limits (C) | -12° to 93° |
| Noise Level @ 70 psi, 60 cpm | 77.7 db(A) |
| Material Inlet/Outlet | 1-1/2″ ANSI Flange |
| Size | 1.5″ (38.1 mm) |
OV-6661A3-3EB-C Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Fluid Cap/Manifold Material | Colorless Polypropylene Flange (3-piece manifold) |
|---|---|
| Seat Material | Polypropylene |
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Pump Type | Non-Metallic, Air Operated, Double Diaphragm |
| Material | Aluminum |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 47 gpm (177.9 lpm) |
| Displacement/Cycle @ 100 psig (Standard Diaphragm) | 0.17 gal (.64 lit) |
| Displacement/Cycle @ 100 psig (Composite PTFE Diaphragm) | 0.14 gal (.525 lit) |
| Max Solid Size | 1/8″ (3.2 mm) |
| Max Temperature Limits (F) | 10° to 200° |
| Max Temperature Limits (C) | -12° to 93° |
| Noise Level @ 70 psi, 60 cpm | 64.5 dB(A) |
| Size | 1″ (25.4 mm) |

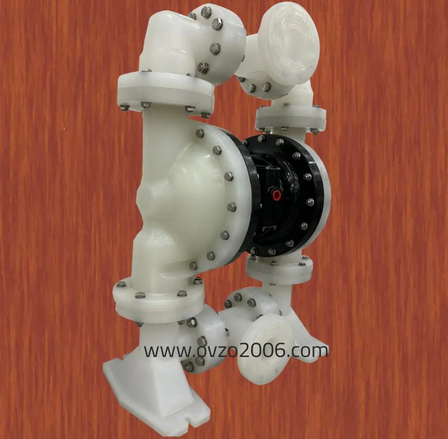

OV-PD30P-FPS-PTT AODD Pumps Compatible With ARO
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
OV-PD30P-FPS-PAA AODD Pumps Compatible With ARO
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
OV-PD10P-FKS-KTT AODD Pumps Compatible With ARO
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
Accessories:
- 66073-2 Air Line Connection Kit: contains Piggyback Filter / Regulator, pipe nipple & 5’ section of hose
- 67237 Diaphragm Failure Detection (DFD)
- 67350 Cycle Counter Kit
- 637397 Air Section Service Kit
- 637396-TT Fluid Service Kit Section
General Description:
- Inlet/ Outlet: 1″ A.N.S.I. / DIN Flange / End
- Center Section: Polypropylene
- Fluid Caps & Manifold Material:PVDF (Kynar)
- Fasteners: SS
- Seat Material: PVDF (Kynar)
- Ball Material: PTFE
- Diaphragm Material: PTFE
OV-PD20P-FKS-KTT AODD Pumps Compatible With ARO
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Electronic Interface | None |
|---|---|
| Center Section Material | Polypropylene/Vinyl Ester |
| Connection Type | ANSI |
| Fluid Cap & Manifold Material | Kynar PVDF |
| Hardware Material | Stainless Steel |
| Seat Material | Kynar PVDF |
| Ball Material | PTFE |
| Diaphragm Material | PTFE/Santoprene |
| Pump Type | Non-Metallic, Air Operated, Double Diaphragm |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 184 gpm (696 lpm) |
| Displacement/Cycle @ 100 psig | 1.4 gal. (5.3 lit.) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Max Temperature Limits (F) | -40° to 350° |
| Max Temperature Limits (C) | -40° to 170° |
| Noise Level @ 70 psi, 60 cpm | 85.0 db(A) |
| Mounting Dimension | 8.18″ x 14.16″ (207.8 mm x 359.7 mm) |
| Size | 2″ (51 mm) |
| Ratio | 1:1 |
| Material Inlet/Outlet | 2″ ANSI/DIN Flange |
| Air Inlet (female) | 3/4 – 14 NPT |
| Air Exhaust (female) | 1-1/2 – 11-1/2 NPSM |
OV-P400/PPPPP/TWS/TF/PTV Fit WILDEN Pumps
Completely interchangeable with Wilden pump parts
Wilden® is a registered trademark of Wilden Pump and Engineering Company.
OVZO2006® offers parts that fit Wilden products, but they are not genuine Wilden parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
04-12644, 1.5″ Wilden Air Operated Double Diaphragm (AODD) Pump
| Description | P400/PPPPP/TWS/TF/PTV |
|---|---|
| Item Number Pump | 04-12644 |
| Port Size | 1,5″ |
| Air Kit | 04-9986-20 |
| Wet Kit | 04-9815-55-201 |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Polypropylene |
| Diaphragms | Full Stroke Ptfe, Wil-Flex Back-Up |
| Valve/ Balls | Teflon |
| Valve Seats | PP with Ptfe Encapsulated Viton |
| Outer Piston | Polypropylene |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 112 |
| Capacity Liters/min | 424 |
| Pump Weight Lbs | 52,0 |
| Pump Weight Kilo | 23 |
OV-PD15P-FKS-KTT AODD Pumps Compatible With ARO
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| PD15P-FKS-KTT Product Specific Data | |
|---|---|
| Center Section Material | Polypropylene |
| Connection Type | 1-1/2in ANSI/Din Flange/End |
| Fluid Cap & Manifold Material | Kynar PVDF (Single port) |
| Hardware Material | Stainless Steel |
| Seat Material | Kynar PVDF |
| Ball Material | PTFE |
| Diaphragm Material | Santoprene, PTFE |
| Pump Type | Diaphragm Pump |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 123.1 gpm (465.9 lpm) |
| Displacement/Cycle @ 100 psig | 0.617 gal. (2.34 lit.) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Max Temperature Limits | -40 to 350° F (-40 to 177° C) |
| Mounting Dimension | 220.7″ x 379.4″ (8.687 mm x 14.937 mm) |
| Noise Level @ 70 psi, 60 cpm | 81.0 db(A) |
| Ratio | 1:1 |
| Material inlet/outlet (Female) | 1-1/2″ ANSI/DIN Flange |
| Air Inlet (Female) | 1/2- 14 NPT |
| Air Exhaust (Female) | 3/4- 14 NPT |
| Size | 1.5″ (38.1 mm) |
| Maximum Dry Suction Lift | 14 ft (4.2 m) |
| Muffler | 93139 Included |
OV-PD15P-FPS-PTT AODD Pumps Compatible With ARO
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Electronic Interface | None |
|---|---|
| Center Section Material | Polypropylene |
| Connection Type | ANSI |
| Fluid Cap & Manifold Material | Polypropylene |
| Hardware Material | Stainless Steel |
| Seat Material | Polypropylene |
| Ball Material | PTFE |
| Diaphragm Material | PTFE/Santoprene |
| Pump Type | Non-Metallic, Air Operated, Double Diaphragm |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 123.1 gpm (465.9 lpm) |
| Displacement/Cycle @ 100 psig | 0.617 gal. (2.34 lit.) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Max Temperature Limits | -40 to 350° F (-40 to 177° C) |
| Mounting Dimension | 220.7″ x 379.4″ (8.687 mm x 14.937 mm) |
| Noise Level @ 70 psi, 60 cpm | 81.0 db(A) |
| Ratio | 1:1 |
| Material inlet/outlet (Female) | 1-1/2″ ANSI/DIN Flange |
| Air Inlet (Female) | 1/2- 14 NPT |
| Air Exhaust (Female) | 3/4- 14 NPT |
| Size | 1.5″ (38.1 mm) |
OV-PD15P-FPS-PAA AODD Pumps Compatible With ARO
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Electronic Interface | None |
|---|---|
| Center Section Material | Polypropylene |
| Connection Type | ANSI |
| Fluid Cap & Manifold Material | Polypropylene |
| Hardware Material | Stainless Steel |
| Seat Material | Polypropylene |
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Pump Type | Non-Metallic, Air Operated, Double Diaphragm |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 123.1 gpm (465.9 lpm) |
| Displacement/Cycle @ 100 psig | 0.617 gal. (2.34 lit.) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Max Temperature Limits | -40 to 350° F (-40 to 177° C) |
| Mounting Dimension | 220.7″ x 379.4″ (8.687 mm x 14.937 mm) |
| Noise Level @ 70 psi, 60 cpm | 81.0 db(A) |
| Ratio | 1:1 |
| Material inlet/outlet (Female) | 1-1/2″ ANSI/DIN Flange |
| Air Inlet (Female) | 1/2- 14 NPT |
| Air Exhaust (Female) | 3/4- 14 NPT |
| Size | 1.5″ (38.1 mm) |
OV-PD01P-HPS-PAA-A Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Compatible Brands | ARO® |
|---|---|
| PUMP SIZE | 0.25 INCH |
| Fluid Cap&Manifold Material | Polypropylene |
| Center Section Material | Aluminium |
| SEAT MATERIALS | Polypropylene |
| BALL MATERIALS | PTFE |
| DIAPHRAGM MATERIALS | PTFE-Santoprene |
General Description:
- Inlet/ Outlet: Hybrid 1/4” NPT / BSP
- Air Motor: Polypropylene
- Fluid Caps & Manifold Material: Polypropylene
- Fasteners: Stainless Steel
- Seat Material:Polypropylene
- Ball Material: Santoprene
- Diaphragm Material: Santoprene
| Item | Description | p/n | Qty | mtl |
| 1 | Rod Assembly (includes seals) | 24028284 | [1] | — |
| 5 | Washer, Diaphragm | 23981541 | [2] | [P] |
| 77 | Plate | 93264 | [2] | — |
| 206 | Caution Label | 93122 | [1] | — |
| 207 | Warning Label | 93616-1 | [1] | — |
| 26 | Screw | 23981574 | [32] | [SS] |
| 6 | Diaphragm Screw | 93810-2 | (2) | [D] |
| 15 | Fluid Cap | 23981640 | (2) | [D] |
| 60 | Inlet Manifold | 23981681 | (1) | [D] |
| 61 | Outlet Manifold | 23981723 | (1) | [D] |
| 43 | Ground Lug | 93004 | (1) | [Co] |
| 6 | Diaphragm Screw | 93810-3 | (2) | [K] |
| 15 | Fluid Cap | 23981657 | (2) | [K] |
| 60 | Inlet Manifold | 23981699 | (1) | [K] |
| 61 | Outlet Manifold | 23981731 | (1) | [K] |
| 43 | Ground Lug | — | ||
| 6 | Diaphragm Screw | 93810-1 | (2) | [P] |
| 15 | Fluid Cap | 23981632 | (2) | [P] |
| 60 | Inlet Manifold | 23981673 | (1) | [P] |
| 61 | Outlet Manifold | 23981715 | (1) | [P] |
| 21 | seat | 96580-2 | (4) | [D] |
| 21 | seat | 96580-3 | (4) | [K] |
| 21 | seat | 96580-1 | (4) | [P] |
| 21 | seat | 96745 | (4) | [P] |
| 21 | seat | 96745-1 | (4) | [K] |
| 21 | seat | 96745-2 | (4) | [D] |
| 22 | ball | 96481-A | (4) | [Sp] |
| 22 | ball | 96481-C | (4) | [H] |
| 22 | ball | 96481-G | (4) | [B] |
| 22 | ball | 96481-4 | (4) | [T] |
| 7 | Diaphragm | 93808 | (2) | [Sp] |
| 7 | Diaphragm | 93808-C | (2) | [H] |
| 7 | Diaphragm | 93808-G | (2) | [B] |
| 7 | Diaphragm | 93898 | (2) | [T] |
| 19 | Seal | 93761 | 4 | [E] |
| 19 | Seal | Y325-119 | 4 | [B] |
| 19 | Seal | Y325-119 | 4 | [B] |
| 19 | Seal | 96514 | 4 | [T] |
| AIR SECTION PARTS | ||||
| Item | Description | Part no | Qty | [Mtl] |
| (PD01X) | 23981392 | (1) | [P] | |
| (All PE01X without Diaphragm Failure Detection) | 23981392 | (1) | [P] | |
| (PE01X With Diaphragm Failure Detection) | 23981608 | (1) | [P] | |
| (PD01E and PE01E) (not available with Diaphragm Failure Detection) |
24243354 | (1) | [GP] | |
| (PD01X, PE01X-XXX-XXX-X0XXX) | 23981434 | (1) | [P] | |
| (All PE01X with Solenoid) | 23981848 | (1) | [P] | |
| (PD01X, PE01X-XXX-XXX-X0XX) | 24028268 | (1) | [D] | |
| (All PE01X with Solenold) | 24086779 | (1) | [D] | |
| (PD01X, PE01X-XXX-XXX-XX0XX) | 23981475 | (1) | [P] | |
| (PE01X-XXX-XXX-XXNXX) | 24110926 | (1) | [P] | |
| (PE01X-XXX-XXX-XXPXX) | 24110926 | (1) | [P] | |
| (PE01X-XXX-XXX-XXEXX) | 24110934 | (1) | [P] | |
| (PE01X-XXX-XXX-XXFXX) | 24110934 | (1) | [P] | |
| (PE01X-XXX-XXX-XXLXX) | 23981475 | (1) | [P] | |
| 132 | Gasket | 23981525 | (1) | [B] |
| (PD01X, PE01X-XXX-XXX-X0XXX) | 24243388 | (1) | [P] | |
| (All PE01X with Solenoid) | 24340275 | (1) | [P] | |
| 137 | O-Ring (0.070 CS x 0.676 ID) | Y-325-17 | (1) | [B] |
| 167 | Pilot Valve Spool Assembly (includes seals) |
24028276 | (1) | [D] |
| 173 | O-Ring | 24243313 | (1) | [U] |
| (PE01X-XXX-XXX-XXEXX) | 96270-1 | (2) | ||
| (PE01X-XXX-XXX-XXLXX) | 96270-1 | (2) | ||
| (PE01X-XXX-XXX-XXNXX) | 96270-1 | (2) | ||
| Item | Description | Part no | Qty | [Mtl] |
| 403 | Valve (AII PE01X with SoIenoid) | 114102 | (1) | |
| 413 | Coil Nut (All PE01X with Solenoid) | 119380 | (1) | |
| 414 | Coil ,120 VAC (PE01X-XXX-XXX-XAXXX) | 116218-33 | (1) | |
| Coil ,24 VAC , 12VDC (PE01X-XXX-XXX-XBXXX) | 116218-38 | (1) | ||
| Coil ,240 VAC (PE01X-XXX-XXX-XCXXX) | 116218-35 | (1) | ||
| Coil ,48 VAC, 24VDC (PE01X-XXX-XXX-XDXXX) | 116218-39 | (1) | ||
| Coil, ATEX, 12VDC (PE01X-XXX-XXX-XGXXX) |
117345-38 | (1) | ||
| Coil, ATEX, 24VDC (PE01X-XXX-XXX-XHXXX) |
117345-39 | (1) | ||
| Coil, ATEX, 220VAC (PE01X-XXX-XXX-XKXXX) |
117345-35 | (1) | ||
| 415 | O-Ring (AII PE01X with Solenoid) | 114103 | (1) | [B] |
| 416 | O-Ring (AII PE01X with Solenoid) | 114104 | (1) | [B] |
| 417 | Screw (AII PE01X with Solenoid) | 96728647 | (2) | |
| 418 | Tube (AII PE01X with Solenoid) | 15309974 | (1) | [SS] |
| 419 | Seal (AII PE01X with Solenoid) | 96957 | (1) | [B] |
| 420 | Snap Ring (AII PE01X with Solenoid) | Y147-43 | (1) | |
| 421 | Retainer (AII PE01X with Solenoid) | 96954 | (1) | [B] |
| 429 | Solenoid Muffler (AII PE01X with Solenoid) |
116464 | (1) | |
OV-P025/PPPPP/WFS/TF/PWF Compatible With WILDEN PUMPS
Completely interchangeable with Wilden pump parts
Wilden® is a registered trademark of Wilden Pump and Engineering Company.
OVZO2006® offers parts that fit Wilden products, but they are not genuine Wilden parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Pump Description | P.025/PPPPP/WFS/TF/PWF |
|---|---|
| Item Number Pump | 00-9612 |
| Port Size | 1/4″ |
| Air Kit | NAK |
| Wet Kit | NME |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Polypropylene |
| Diaphragms | Wil-Flex |
| Valve/ Balls | Teflon |
| Valve Seats | PP with Wil-Flex O-Ring |
| Outer Piston | Polypropylene |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 4 |
| Capacity Liters/min | 18 |
| Pump Weight Lbs | 3,4 |
| Pump Weight Kilo | 1 |
| Specialty Code | #N/A |
OV-T15/AAAAB/BNS/BN/BN/0014 Compatible With WILDEN PUMPS
Completely interchangeable with Wilden pump parts
Wilden® is a registered trademark of Wilden Pump and Engineering Company.
OVZO2006® offers parts that fit Wilden products, but they are not genuine Wilden parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Pump Description | T15/AAAAB/BNS/BN/BN/0014 |
|---|---|
| Item Number Pump | 15-10003 |
| Port Size | 3″ |
| Air Kit | 15-9980-07 |
| Wet Kit | 15-9804-52 |
| Air Distribution System | Turbo-Flo™ |
| Pump Construction | Aluminum |
| Diaphragms | Buna-N |
| Valve/ Balls | Buna-N |
| Valve Seats | Buna-N |
| Outer Piston | Aluminum |
| Air Chamber | Aluminum |
| Center Block | Aluminum |
| Air Valve | Bronze |
| Capacity GPM | 231 |
| Capacity Liters/min | 878 |
| Pump Weight Lbs | 112,0 |
| Pump Weight Kilo | 50 |
| Specialty Code | BSPT |
OV-T15/AAAAB/NES/NE/NE/0014 Compatible With WILDEN PUMPS
Completely interchangeable with Wilden pump parts
Wilden® is a registered trademark of Wilden Pump and Engineering Company.
OVZO2006® offers parts that fit Wilden products, but they are not genuine Wilden parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Pump Description | T15/AAAAB/NES/NE/NE/0014 |
|---|---|
| Item Number Pump | 15-10013 |
| Port Size | 3″ |
| Air Kit | 15-9980-07 |
| Wet Kit | 15-9804-51 |
| Air Distribution System | Turbo-Flo™ |
| Pump Construction | Aluminum |
| Diaphragms | Neoprene |
| Valve/ Balls | Neoprene |
| Valve Seats | Neoprene |
| Outer Piston | Aluminum |
| Air Chamber | Aluminum |
| Center Block | Aluminum |
| Air Valve | Bronze |
| Capacity GPM | 231 |
| Capacity Liters/min | 878 |
| Pump Weight Lbs | 113,0 |
| Pump Weight Kilo | 51 |
| Specialty Code | BSPT |
QBY-80 AODD Pumps Aluminum
Product Type |
Pneumatic Diaphragm Pump |
Air Inlet Size (in) |
3 |
Air Inlet Thread |
Female |
Air Inlet Thread Type |
BSP |
Compatible Material |
Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water – Wastewater Transfer |
Fluid Inlet Size (in) |
3 |
Fluid Inlet Thread Type |
BSP |
Max Air Pressure (MPa) |
0.8 |
Max Air Pressure (psi) |
120 |
Max Fluid Pressure (MPa) |
0.8 |
Max Fluid Pressure (psi) |
120 |
Fluid Inlet Size (cm) |
5.08 |
Fluid Inlet Size (mm) |
50.8 |
Max Air Pressure (bar) |
8 |
Max Air Pressure (kPa) |
800 |
Max Fluid Pressure (bar) |
8 |
Max Fluid Pressure (kPa) |
800 |
Max Operating Temperature (°F) |
150 |
Air Exhaust Port Size (in) |
3/4 |
Air Exhaust Port Thread Gender |
Female |
Air Exhaust Port Thread Type |
BSP |
Application |
Industrial |
Ball Material |
Buna |
Center Section Material |
Aluminum |
Connection Type |
Threaded |
Diaphragm Material |
Buna |
Fluid Inlet Thread Gender |
Female |
Fluid Outlet Size (in) |
3 |
Fluid Outlet Thread Gender |
Female |
Fluid Outlet Thread Type |
BSP |
Fluid Section Material |
Aluminum |
Manifold Configuration |
End Port |
Material |
Aluminum |
Max Air Consumption (SCFM) |
175 |
Max Cycle Rate (CPM) |
145 |
Max Flow Rate (GPM) |
150 |
Max Solid Size (in) |
0.25 |
Power Source |
Air |
Seat Material |
Buna |
Standards Met |
ATEX, CE |
Fluid Outlet Size (cm) |
5.08 |
Fluid Outlet Size (mm) |
50.8 |
Max Flow Rate (L/min) |
568 |
Max Operating Temperature (°C) |
66 |
Max Solid Size (cm) |
0.635 |
Max Solid Size (mm) |
6.35 |
QBY-40 AODD Pumps Aluminum
Product Type |
Pneumatic Diaphragm Pump |
Air Inlet Size (in) |
1-1/2 |
Air Inlet Thread |
Female |
Air Inlet Thread Type |
BSPT |
Compatible Material |
Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water – Wastewater Transfer |
Fluid Inlet Size (in) |
1.5 |
Fluid Inlet Thread Type |
BSP |
Max Air Pressure (MPa) |
0.8 |
Max Air Pressure (psi) |
120 |
Max Fluid Pressure (MPa) |
0.8 |
Max Fluid Pressure (psi) |
120 |
Fluid Inlet Size (cm) |
5.08 |
Fluid Inlet Size (mm) |
50.8 |
Max Air Pressure (bar) |
8 |
Max Air Pressure (kPa) |
800 |
Max Fluid Pressure (bar) |
8 |
Max Fluid Pressure (kPa) |
800 |
Max Operating Temperature (°F) |
150 |
Air Exhaust Port Size (in) |
3/4 |
Air Exhaust Port Thread Gender |
Female |
Air Exhaust Port Thread Type |
BSP |
Application |
Industrial |
Ball Material |
Buna |
Center Section Material |
Aluminum |
Connection Type |
Threaded |
Diaphragm Material |
Buna |
Fluid Inlet Thread Gender |
Female |
Fluid Outlet Size (in) |
1.5 |
Fluid Outlet Thread Gender |
Female |
Fluid Outlet Thread Type |
NPT |
Fluid Section Material |
Aluminum |
Manifold Configuration |
End Port |
Material |
Aluminum |
Max Air Consumption (SCFM) |
175 |
Max Cycle Rate (CPM) |
145 |
Max Flow Rate (GPM) |
150 |
Max Solid Size (in) |
0.25 |
Power Source |
Air |
Seat Material |
Buna |
Fluid Outlet Size (cm) |
5.08 |
Fluid Outlet Size (mm) |
50.8 |
Max Flow Rate (L/min) |
568 |
Max Operating Temperature (°C) |
66 |
Max Solid Size (cm) |
0.635 |
Max Solid Size (mm) |
6.35 |
OV-T15/AAAAB/WFS/WF/WF/0014 Compatible With WILDEN PUMPS
Completely interchangeable with Wilden pump parts
Wilden® is a registered trademark of Wilden Pump and Engineering Company.
OVZO2006® offers parts that fit Wilden products, but they are not genuine Wilden parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Pump Description | T15/AAAAB/WFS/WF/WF/0014 |
|---|---|
| Item Number Pump | 15-10036 |
| Port Size | 3″ |
| Air Kit | 15-9980-07 |
| Wet Kit | 15-9804-58 |
| Air Distribution System | Turbo-Flo™ |
| Pump Construction | Aluminum |
| Diaphragms | Wil-Flex |
| Valve/ Balls | Wil-Flex |
| Valve Seats | Wil-Flex |
| Outer Piston | Aluminum |
| Air Chamber | Aluminum |
| Center Block | Aluminum |
| Air Valve | Bronze |
| Capacity GPM | 223 |
| Capacity Liters/min | 845 |
| Pump Weight Lbs | 108,0 |
| Pump Weight Kilo | 48 |
| Specialty Code | BSPT |
OV-T8/AAAAB/WFS/WF/WF/0014 Compatible With WILDEN PUMPS
Completely interchangeable with Wilden pump parts
Wilden® is a registered trademark of Wilden Pump and Engineering Company.
OVZO2006® offers parts that fit Wilden products, but they are not genuine Wilden parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Pump Description | T8/AAAAB/WFS/WF/WF/0014 |
|---|---|
| Item Number Pump | 08-11052 |
| Port Size | 2″ |
| Air Kit | 08-9980-07 |
| Wet Kit | 08-9804-58 |
| Air Distribution System | Turbo-Flo™ |
| Pump Construction | Aluminum |
| Diaphragms | Wil-Flex |
| Valve/ Balls | Wil-Flex |
| Valve Seats | Wil-Flex |
| Outer Piston | Aluminum |
| Air Chamber | Aluminum |
| Center Block | Aluminum |
| Air Valve | Bronze |
| Capacity GPM | 161 |
| Capacity Liters/min | 613 |
| Pump Weight Lbs | 72,0 |
| Pump Weight Kilo | 32 |
| Specialty Code | BSPT |
OV-P025/PZPPP/TNL/TF/PTV Compatible With WILDEN PUMPS
Completely interchangeable with Wilden pump parts
Wilden® is a registered trademark of Wilden Pump and Engineering Company.
OVZO2006® offers parts that fit Wilden products, but they are not genuine Wilden parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
0.25″ PRO-FLO, CLAMPED POLYPROPYLENE, NPT/BSP COMBO W/PTFE
| Pump Description | P.025/PZPPP/TEL/TF/PTV |
|---|---|
| Port Size | 1/4″ |
| Air Kit | |
| Wet Kit | |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Polypropylene |
| Diaphragms | PTFE, Epdm Back-Up O-Ring, IPD |
| Valve/ Balls | PTFE |
| Valve Seats | PP with PTFE Encapsulated Viton |
| Outer Piston | None |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
OV-PD20P-FPS-PTTAODD Pumps Compatible With ARO
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| PD20P-FPS-PTT Product Specific Data | |
| Electronic Interface | None |
| Center Section Material | Polypropylene/Vinyl Ester |
| Connection Type | ANSI |
| Fluid Cap & Manifold Material | Polypropylene |
| Hardware Material | Stainless Steel |
| Seat Material | Polypropylene |
| Ball Material | PTFE |
| Diaphragm Material | PTFE/Santoprene |
| Pump Type | Diaphragm Pump |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 184 gpm (696 lpm) |
| Displacement/Cycle @ 100 psig | 1.4 gal. (5.3 lit.) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Max Temperature Limits (F) | -40° to 350° |
| Max Temperature Limits (C) | -40° to 170° |
| Noise Level @ 70 psi, 60 cpm | 85.0 db(A) |
| Mounting Dimension | 8.18″ x 14.16″ (207.8 mm x 359.7 mm) |
| Size | 2″ (51 mm) |
| Ratio | 01:01 |
| Material Inlet/Outlet | 2″ ANSI/DIN Flange |
| Air Inlet (female) | 3/4 – 14 NPT |
| Air Exhaust (female) | 1-1/2 – 11-1/2 NPSM |
| Maximum Dry Suction Lift | 14 ft (4.2 m) |
| Muffler | 93139 Included |
| AIR KIT | 637369 |
| WET KIT | 637373-TT |
OV-PD20P-FPS-PAA AODD Pumps Compatible With ARO
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| PD20P-FPS-PAA Product Specific Data | |
| Electronic Interface | None |
| Center Section Material | Polypropylene/Vinyl Ester |
| Connection Type | ANSI |
| Fluid Cap & Manifold Material | Polypropylene |
| Hardware Material | Stainless Steel |
| Seat Material | Polypropylene |
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Pump Type | Diaphragm Pump |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 184 gpm (696 lpm) |
| Displacement/Cycle @ 100 psig | 1.4 gal. (5.3 lit.) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Max Temperature Limits (F) | -40° to 350° |
| Max Temperature Limits (C) | -40° to 170° |
| Noise Level @ 70 psi, 60 cpm | 85.0 db(A) |
| Mounting Dimension | 8.18″ x 14.16″ (207.8 mm x 359.7 mm) |
| Size | 2″ (51 mm) |
| Ratio | 01:01 |
| Material Inlet/Outlet | 2″ ANSI/DIN Flange |
| Air Inlet (female) | 3/4 – 14 NPT |
| Air Exhaust (female) | 1-1/2 – 11-1/2 NPSM |
| Maximum Dry Suction Lift | 14 ft (4.2 m) |
| Muffler | 93139 Included |
| AIR KIT | 637369 |
| WET KIT | 637373-AA |
OV-PD10P-FPS-PAA AODD Pumps Compatible With ARO
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| WEIGHT | 9.01 kg |
|---|---|
| SIZE | 1” |
| CENTRE | Polypropylene |
| HARDWARE | Stainless Steel |
| THREAD | End Flanged |
| WETTED | Polypropylene |
| DIAPHRAGM | Santoprene |
| BALL | Santoprene |
| SEAT | Polypropylene |
| AIR KIT | 637397 |
| WET KIT | 637396-AA |
OV-P200/PKPPP/TNU/TF/PTV Fit WILDEN Pumps
1″ PRO-FLO, BOLTED POLYPROPYLENE, ANSI W/ PTFE
Completely interchangeable with Wilden pump parts
Wilden® is a registered trademark of Wilden Pump and Engineering Company.
OVZO2006® offers parts that fit Wilden products, but they are not genuine Wilden parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| Pump Description | P200/PKPPP/TNU/TF/PTV |
|---|---|
| Item Number Pump | 02-10568 |
| Port Size | 1″ |
| Air Kit | 02-9985-20 |
| Wet Kit | 02-9815-55 |
| Air Distribution System | Pro-Flo® |
| Pump Construction | Polypropylene |
| Diaphragms | Ptfe with Neoprene Back-Up |
| Valve/ Balls | Teflon |
| Valve Seats | PP with Ptfe Encapsulated Viton |
| Outer Piston | Pvdf |
| Air Chamber | Polypropylene |
| Center Block | Polypropylene |
| Air Valve | Polypropylene |
| Capacity GPM | 45 |
| Capacity Liters/min | 174 |
| Pump Weight Lbs | 27,0 |
| Pump Weight Kilo | 12 |
OV-649384 25F PUMP Fit GRACO Husky 1050 F PVDF
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
24C721 – Kit, 1050 Seat, PVDF
24B645 – Kit, 1050 Ball, PTFE
24B627 – Kit, 1050 Diaphragm, PTFE
24B768 – Kit, 1050 Air Valve
25A860 – Kit, 1050 Complete Fluid Repair Kit
15R676 – Kit, 1050 Diaphragm Install Tool
OV-666320-EEB-C 3″ Metallic Diaphragm Pump Fit ARO PUMP
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
| 666320-EEB-C Product Specific Data | |
|---|---|
| Center Body Material/Fluid Connection | Aluminum/BSP |
| Fluid Cap/Manifold Material/Hardware | Aluminum/Carbon steel |
| Seat Material | Santoprene |
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Pump Type | Diaphragm Pump |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 237 gpm (897.0 lpm) |
| Max Solid Size | 3/8″ (9.5 mm) |
| Max Temperature Limits (C) | -40° to 177° |
| Max Temperature Limits (F) | -40° to 350° |
| Noise Level @ 70 psig, 60 cpm | 86.3 db(A) |
| Size | 3″ (76.2 mm) |
OV-PD15A-BSS-STT AODD PUMPS Expert Metallic Fit ARO Pumps
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts
| PD15A-BSS-STT Product Specific Data | |
|---|---|
| Electronic Interface | None |
| Center Section Material | Aluminum |
| Connection Type | BSP |
| Fluid Cap & Manifold Material | Stainless steel |
| Hardware Material | Stainless Steel |
| Seat Material | 316 Stainless Steel |
| Ball Material | PTFE |
| Diaphragm Material | PTFE/Santoprene |
| Pump Type | Diaphragm Pump |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 123 gpm (465.6 lpm) |
| Displacement/Cycle @ 100 psig | 0.617 gal. (2.34 lit.) |
| Max Temperature Limits (F) | -40° to 350°F |
| Max Temperature Limits (C) | -40° to 177°F |
| Mounting Dimension | 9″ x 11.75″ (228.6 mm x 298.5 mm) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Noise Level @ 70 psi, 60 cpm | 82.8 db(A) |
| Ratio | 1:1 |
| Material Inlet/Outlet (female) | .. |
| Air Inlet (female) | 1/2 – 14 NPT |
| Air Exhaust (female) | 3/4 – 14 NPT |
| Size | 1.5″ (38.1 mm) |
| Maximum Dry Suction Lift | 14 ft (4.2 m) |
| Muffler | 350-568 Included |
OV-PD20A-BSS-STT-B AODD PUMPS Expert Metallic Fit ARO Pumps
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
| PD20A-ASS-STT-B Product Specific Data | |
|---|---|
| Electronic Interface | None |
| Air Motor/Air Cap Material | Aluminum / Aluminum |
| Connection Type | BSP |
| Fluid Cap & Manifold Material | Stainless Steel |
| Hardware Material | Stainless Steel |
| Seat Material | 316 Stainless Steel |
| Ball Material | PTFE |
| Diaphragm Material | PTFE/Santoprene |
| Pump Type | Diaphragm Pump |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 172 gpm (651 lpm) |
| Displacement/Cycle @ 100 psig | 1.4 gal. (5.3 lit.) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Max Temperature Limits (C) | -40° to 177° |
| Max Temperature Limits (F) | -40° to 350° |
| Noise Level @ 70 psi, 60 cpm | 85.0 db(A) |
| Ratio | 1:1 |
| Air Inlet (female) | 3/4- 14 NPTF |
| Air Exhaust (female) | 1-1/2 – 11-1/2 NPT |
| Size | 2″ (51 mm) |
| Maximum Dry Suction Lift | 14 ft (4.2 m) |
| Muffler | 67389 Included |
OV-PD20A-ASS-STT-B AODD PUMPS Expert Metallic Fit ARO Pumps
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
| PD20A-ASS-STT-B Product Specific Data | |
|---|---|
| Electronic Interface | None |
| Air Motor/Air Cap Material | Aluminum / Aluminum |
| Connection Type | NPTF |
| Fluid Cap & Manifold Material | Stainless Steel |
| Hardware Material | Stainless Steel |
| Seat Material | 316 Stainless Steel |
| Ball Material | PTFE |
| Diaphragm Material | PTFE/Santoprene |
| Pump Type | Diaphragm Pump |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 172 gpm (651 lpm) |
| Displacement/Cycle @ 100 psig | 1.4 gal. (5.3 lit.) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Max Temperature Limits (C) | -40° to 177° |
| Max Temperature Limits (F) | -40° to 350° |
| Noise Level @ 70 psi, 60 cpm | 85.0 db(A) |
| Ratio | 1:1 |
| Air Inlet (female) | 3/4- 14 NPTF |
| Air Exhaust (female) | 1-1/2 – 11-1/2 NPT |
| Size | 2″ (51 mm) |
| Maximum Dry Suction Lift | 14 ft (4.2 m) |
| Muffler | 67389 Included |
OV-PD15A-AAP-AAA Expert Metallic Diaphragm Pump Fit ARO PD15
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
| PD15A-AAP-AAA Product Specific Data | |
|---|---|
| Electronic Interface | None |
| Center Section Material | Aluminum |
| Connection Type | NPTF |
| Fluid Cap & Manifold Material | Aluminum |
| Hardware Material | Plated Steel |
| Seat Material | Aluminum |
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Pump Type | Diaphragm Pump |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 123 gpm (465.6 lpm) |
| Displacement/Cycle @ 100 psig | 0.617 gal. (2.34 lit.) |
| Max Temperature Limits (F) | -40° to 350°F |
| Max Temperature Limits (C) | -40° to 177°F |
| Mounting Dimension | 9″ x 11.75″ (228.6 mm x 298.5 mm) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Noise Level @ 70 psi, 60 cpm | 82.8 db(A) |
| Ratio | 1:1 |
| Material Inlet/Outlet (female) | .. |
| Air Inlet (female) | 1/2 – 14 NPT |
| Air Exhaust (female) | 3/4 – 14 NPT |
| Size | 1.5″ (38.1 mm) |
| Maximum Dry Suction Lift | 14 ft (4.2 m) |
| Muffler | 350-568 Included |
OV-PD15A-BAP-AAA Expert Metallic Diaphragm Pump Fit ARO PD15
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
| PD15A-BAP-AAA Product Specific Data | |
|---|---|
| Electronic Interface | None |
| Center Section Material | Aluminum |
| Connection Type | BSP |
| Fluid Cap & Manifold Material | Aluminum |
| Hardware Material | Plated Steel |
| Seat Material | Aluminum |
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Pump Type | Diaphragm Pump |
| Max Air Inlet Pressure | 8.3 bar (120 psi) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.3 bar (120 psi) |
| Max Flow Rate | 123 gpm (465.6 lpm) |
| Displacement/Cycle @ 100 psig | 0.617 gal. (2.34 lit.) |
| Max Temperature Limits (F) | -40° to 350°F |
| Max Temperature Limits (C) | -40° to 177°F |
| Mounting Dimension | 9″ x 11.75″ (228.6 mm x 298.5 mm) |
| Max Solid Size | 1/4″ (6.4 mm) |
| Noise Level @ 70 psi, 60 cpm | 82.8 db(A) |
| Ratio | 1:1 |
| Material Inlet/Outlet (female) | .. |
| Air Inlet (female) | 1/2 – 14 NPT |
| Air Exhaust (female) | 3/4 – 14 NPT |
| Size | 1.5″ (38.1 mm) |
| Maximum Dry Suction Lift | 14 ft (4.2 m) |
| Muffler | 350-568 Included |
OV-PD52911 PP Seats PTFE Balls PTFE Diaphragm Fit Husky 515
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
| Air Exhaust Port Size (in) | 3/8 |
|---|---|
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | NPT |
| Air Inlet Size (in) | 1/4 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | PTFE |
| Center Section Material | Polypropylene |
Repair Parts
| PART NO. | DESCRIPTION |
|---|---|
| D05900 | Seat Kit |
| 241657 | Air Valve Repair Kit |
| D05001 | Diaphragm Kit |
| D05010 | Ball Kit |
| D05911 | Complete Fluid Repair Kit |
OV-6661A3-344-C Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
| Compatible Brands | ARO® |
|---|---|
| PUMP SIZE | 1″ |
| Fluid Cap&Manifold Material | Polypropylene |
| Center Section Material | Aluminium |
| SEAT MATERIALS | Polypropylene |
| BALL MATERIALS | PTFE |
| DIAPHRAGM MATERIALS | PTFE-Santoprene |
OV-PD01P-HPS-PTT-A Compatible With ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
Technical Specification
| PD01P-HPS-PTT-A Product Specific Data | |
|---|---|
| Model Series | Standard Pump |
| Center body material | Polypropylene |
| Connection | Hybrid 1/4″ NPT / BSP |
| Fluid caps/Manifold material | Polypropylene |
| Hardware material | Stainless Steel |
| Seat/Spacer Material | Polypropylene |
| Check Material | PTFE |
| Diaphragm/O-Ring Material | PTFE |
| Revision | Revision |
| Pump Type | Diaphragm Pump |
| Max Air Inlet Pressure | 8.6 bar (125 psi) |
| Min Air Inlet Pressure | 0.69 bar (10 psi) |
| Max Outlet Pressure | 8.6 bar (125 psi) |
| Max Flow Rate | 5.3 gpm (20 lpm) |
| Max Material Inlet Pressure | 0.69 bar (10 psi) |
| Displacement/Cycle @ 125 p.s.i.g | 0.019 gal / 0.072 ltrs |
| Max Solid Size | 1/16″ dia.(1.6 mm) |
| Max Temperature Limits | 35° to 175° F (2° to 79° C) |
| Noise Level @ 70 psi, 60 cpm | 62.3 db(A) |
| Ratio | 1:1 |
| Maximum Dry Suction Lift | 15 ft (4.6 m) |
| Muffler | Integral, Included |
OV-PD10P-FPS-PTT AODD Pumps Compatible With ARO
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
All names, numbers, symbols and descriptions are used for reference purposes only.
It is not implied that any part listed is the product of these manufacturers.
| WEIGHT | 9.01 kg |
|---|---|
| SIZE | 1” |
| CENTRE | Polypropylene |
| HARDWARE | Stainless Steel |
| THREAD | End Flanged |
| WETTED | Polypropylene |
| DIAPHRAGM | PTFE |
| BALL | PTFE |
| SEAT | Polypropylene |
| AIR KIT | 637397 |
| WET KIT | 637396-TT |
OV-PD05P-ASS-STT Metallic Stainless Steel 0.5 Inch Fit ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
| PRODUCT TYPE | AODD Pump |
|---|---|
| MATERIAL – DIAPHRAGM | PTFE/Santoprene |
| BRAND | ARO |
| PUMP APPLICATION | Air Operated |
| INLET/OUTLET CONNECTION TYPE | NPTF |
| OUTLET SIZE | 1/2 in |
| SOLIDS HANDLING | 3/32 in |
| MATERIAL – BALLS | Teflon/PTFE |
| MATERIAL – FLUID CAPS AND MANIFOLD | Stainless Steel |
| MATERIAL – SEATS | 316 Stainless Steel |
| MAX AIR INLET PRESSURE | 100 psi (6.9 bar) |
| MAX FLOW | 12 gpm (45.4 lpm) |
| MAX FLUID PRESSURE | 100 psi (6.9 bar) |
| MAX TEMPERATURE | 175°F (79.4°C) |
| NOISE LEVEL | 75.0 dB |
| MATERIAL – HARDWARE | Stainless Steel |
| DISPLACEMENT | Positive Displacement |
OV-PD05P-BSS-STT Metallic Stainless Steel 0.5 Inch Fit ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
| Weight | 58.8 kg |
|---|---|
| Compatible Brands | ARO® |
| PUMP SIZE | 0.5″ |
| Fluid Cap&Manifold Material | Stainless Steel |
| Center Section Material | Polypropylene |
| SEAT MATERIALS | STAINLESS STEEL |
| BALL MATERIALS | PTFE |
| DIAPHRAGM MATERIALS | PTFE |
| PORTING OPTIONS | BSP (Tapered) Threads |
OV-PD30A-BSS-SAA-B Metallic Stainless Steel 3 Inch Fit ARO Pump
Completely interchangeable with ARO pumps parts
ARO® is a registered trade mark of Ingersoll Rand Company.
OVZO2006® offers parts that fit ARO products, but they are not genuine ARO parts.
| Weight | 58.8 kg |
|---|---|
| Compatible Brands | ARO® |
| PUMP SIZE | 3″ |
| Fluid Cap&Manifold Material | Stainless Steel |
| Center Section Material | Aluminium |
| SEAT MATERIALS | STAINLESS STEEL |
| BALL MATERIALS | SANTOPRENE |
| DIAPHRAGM MATERIALS | Santoprene |
| PORTING OPTIONS | BSP (Tapered) Threads |
OV-652109 Aluminum PTFE Diaphragm Center Flange Fit GRACO Husky 3300
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
| Compatible Brands | GRACO® |
|---|---|
| PUMP SIZE | 3″ |
| PORTING OPTIONS | Center Flange |
| WETTED MATERIAL | ALUMINIUM |
| SEAT MATERIALS | STAINLESS STEEL |
| BALL MATERIALS | PTFE |
| DIAPHRAGM MATERIALS | PTFE |
Configuration Number:
3300A-A01AA2SSPTPTPT
Repair Kits
24K935 – Kit, 3300 Seat, 316 SST
24K943 – Kit, 3300 Ball, PTFE
24K905 – Kit, 3300 Diaphragm, PTFE
24K860 – Kit, 3300 Air Valve
25A873 – Kit, 3300 Complete Fluid Repair Kit
OV-652124 Aluminum Santoprene Diaphragm Center Flange Fit GRACO Husky 3300
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
| Compatible Brands | GRACO® |
|---|---|
| PUMP SIZE | 3″ |
| PORTING OPTIONS | Center Flange |
| SEAT MATERIALS | SANTOPRENE |
| WETTED MATERIAL | ALUMINIUM |
| BALL MATERIALS | SANTOPRENE |
| DIAPHRAGM MATERIALS | Santoprene |
Configuration Number:
3300A-A01AA2SPSPSPBN
Repair Kits
24K934 – Kit, 3300 Seat, Santoprene
24K944 – Kit, 3300 Ball, Santoprene
24K902 – Kit, 3300 Diaphragm, Santoprene
24K860 – Kit, 3300 Air Valve
25A871 – Kit, 3300 Complete Fluid Repair Kit
OV-DFF666 Cast Iron Santoprene Diaphragm 2 BSP Fit GRACO Husky 2150
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
| Compatible Brands | GRACO® |
|---|---|
| PUMP SIZE | 2″ |
| PORTING OPTIONS | BSP (Tapered) Threads |
| SEAT MATERIALS | SANTOPRENE |
| WETTED MATERIAL | Cast Iron |
| BALL MATERIALS | SANTOPRENE |
| DIAPHRAGM MATERIALS | Santoprene |
Configuration Number:
2150I-A01AI2SPSPSPPT
Repair Kits
D0F600 – Kit, 2150 Seat, Santoprene
D0F060 – Kit, 2150 Ball, Santoprene
D0F006 – Kit, 2150 Diaphragm, Santoprene
236273 – Kit, 2150 Air Valve
D0F666 – Kit, 2150 Complete Fluid Repair Kit
OV-DFD311 SS PTFE Diaphragm 2 BSP Fit GRACO Husky 2150
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
Configuration Number:
2150S-A01AS2SSPTPTPT
Repair Kits
D0F300 – Kit, 2150 Seat, 316 SST
D0F010 – Kit, 2150 Ball, PTFE
D0F001 – Kit, 2150 Diaphragm, PTFE
236273 – Kit, 2150 Air Valve
D0F311 – Kit, 2150 Complete Fluid Repair Kit
| Compatible Brands | GRACO® |
|---|---|
| PUMP SIZE | 2″ |
| PORTING OPTIONS | BSP (Tapered) Threads |
| SEAT MATERIALS | STAINLESS STEEL |
| WETTED MATERIAL | Stainless Steel |
| BALL MATERIALS | PTFE |
| DIAPHRAGM MATERIALS | PTFE |
OV-DF2911 PP PTFE Diaphragm 2 End Flange Fit GRACO Husky 2150
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
PDF2911 PP PTFE Diaphragm 2 End Flange Fit GRACO Husky2150
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
Pumpkits® offers parts that fit Graco products, but they are not genuine Graco parts.
Configuration Number:
2150P-A01AP2PPPTPTPT
Repair Kits
D0G900 – Kit, 2150 Seat, Polypropylene
D0G010 – Kit, 2150 Ball, PTFE
D0G001 – Kit, 2150 Diaphragm, PTFE
236273 – Kit, 2150 Air Valve
D0G911 – Kit, 2150 Complete Fluid Repair Kit
| Compatible Brands | GRACO® |
|---|---|
| PUMP SIZE | 2″ |
| PORTING OPTIONS | END-Flange |
| SEAT MATERIALS | Polypropylene |
| WETTED MATERIAL | Polypropylene |
| BALL MATERIALS | PTFE |
| DIAPHRAGM MATERIALS | PTFE |
OV-DF2966 PP Santoprene Diaphragm 2 End Flange Fit GRACO Husky 2150
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
It is not implied that any part listed is the product of these manufacturers.
Configuration Number:
2150P-A01AP2PPSPSPPT
Repair Kits
D0G900 – Kit, 2150 Seat, Polypropylene
D0G060 – Kit, 2150 Ball, Santoprene
D0G006 – Kit, 2150 Diaphragm, Santoprene
236273 – Kit, 2150 Air Valve
D0G966 – Kit, 2150 Complete Fluid Repair Kit
| Compatible Brands | GRACO® |
|---|---|
| PUMP SIZE | 2″ |
| PORTING OPTIONS | END-Flange |
| SEAT MATERIALS | Polypropylene |
| WETTED MATERIAL | Polypropylene |
| BALL MATERIALS | SANTOPRENE |
| DIAPHRAGM MATERIALS | Santoprene |
OV-DBD311 SS Diaphragm PTFE 1.5″ BSP Fit Husky 1590
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
It is not implied that any part listed is the product of these manufacturers.
Part Number: PDBD311
Configuration Number:
1590S-A01AS2SSPTPTPT
Repair Kits
D0B300 – Kit, 1590 Seat, 316 SST
D0B010 – Kit, 1590 Ball, PTFE
D0B001 – Kit, 1590 Diaphragm, PTFE
236273 – Kit, 1590 Air Valve
D0B311 – Kit, 1590 Complete Fluid Repair Kit
24V543 – Kit, 1590 Diaphragm Install Tool
| Compatible Brands | GRACO® |
|---|---|
| PUMP SIZE | 1.5″ |
| WETTED MATERIAL | Stainless Steel |
| PORTING OPTIONS | BSP (Tapered) Threads |
| SEAT MATERIALS | STAINLESS STEEL |
| BALL MATERIALS | PTFE |
| DIAPHRAGM MATERIALS | PTFE |
OV-DB2911 AODD Pumps PP Fit Husky 1590
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
It is not implied that any part listed is the product of these manufacturers.
Part Number: PDB2911
Configuration Number:
1590P-A01AP2PPPTPTPT
Repair Kits
D0C900 – Kit, 1590 Seat, Polypropylene
D0C010 – Kit, 1590 Ball, PTFE
D0C001 – Kit, 1590 Diaphragm, PTFE
236273 – Kit, 1590 Air Valve
D0C911 – Kit, 1590 Complete Fluid Repair Kit
24V543 – Kit, 1590 Diaphragm Install Tool
| Compatible Brands | GRACO® |
|---|---|
| PUMP SIZE | 1.5″ |
| WETTED MATERIAL | Polypropylene |
| PORTING OPTIONS | BSP (Tapered) Threads |
| SEAT MATERIALS | Polypropylene |
| BALL MATERIALS | PTFE |
| DIAPHRAGM MATERIALS | PTFE |
OV-DB2966 PP Diaphragm Santoprene 1.5″ BSP Fit Husky 1590
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
It is not implied that any part listed is the product of these manufacturers.
Part Number: PDB2966
Configuration Number:
1590P-A01AP2PPSPSPPT
Repair Kits
D0C900 – Kit, 1590 Seat, Polypropylene
D0C060 – Kit, 1590 Ball, Santoprene
D0C006 – Kit, 1590 Diaphragm, Santoprene
236273 – Kit, 1590 Air Valve
D0C966 – Kit, 1590 Complete Fluid Repair Kit
24V543 – Kit, 1590 Diaphragm Install Tool
| Compatible Brands | GRACO® |
|---|---|
| PUMP SIZE | 1.5″ |
| WETTED MATERIAL | Polypropylene |
| PORTING OPTIONS | BSP (Tapered) Threads |
| SEAT MATERIALS | Polypropylene |
| BALL MATERIALS | SANTOPRENE |
| DIAPHRAGM MATERIALS | Santoprene |
OV-DBC311 Aluminum PTFE Diaphragm 1.5″ BSP Fit Husky 1590
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
It is not implied that any part listed is the product of these manufacturers.
Part Number: PDBC311
Configuration Number:
1590A-A01AA2SSPTPTPT
Repair Kits
D0B300 – Kit, 1590 Seat, 316 SST
D0B010 – Kit, 1590 Ball, PTFE
D0B001 – Kit, 1590 Diaphragm, PTFE
236273 – Kit, 1590 Air Valve
D0B311 – Kit, 1590 Complete Fluid Repair Kit
24V543 – Kit, 1590 Diaphragm Install Tool
| Compatible Brands | GRACO® |
|---|---|
| PUMP SIZE | 1.5″ |
| WETTED MATERIAL | ALUMINIUM |
| PORTING OPTIONS | BSP (Tapered) Threads |
| SEAT MATERIALS | STAINLESS STEEL |
| BALL MATERIALS | PTFE |
| DIAPHRAGM MATERIALS | PTFE |
OV-647035 Aluminum Santoprene Diaphragm 1″ BSP Fit Husky 1050 Metal Pumps
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
It is not implied that any part listed is the product of these manufacturers.
| Connection Type | Threaded |
|---|---|
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | BSPT |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | BSPT |
| Fluid Section Material | Aluminum |
| Manifold Configuration | End Port, Center Port |
OV-D5B911 PP PTFE Diaphragm 0.5″ BSP Fit Graco Husky 515
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
It is not implied that any part listed is the product of these manufacturers.
| Connection Type | Threaded |
|---|---|
| Ball Material | PTFE |
| Diaphragm Material | PTFE |
| Fluid Inlet Size (in) | 1/2 |
| Fluid Inlet Thread Type | BSPT |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Type | BSPT |
| Fluid Section Material | Polypropylene |
| Manifold Configuration | Center Port |
| Manifold O-Ring Material | PTFE |
| Material | Polypropylene |
OV-D5B966 PP Santoprene Diaphragm 0.5″ BSP Fit Graco Husky 515
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
It is not implied that any part listed is the product of these manufacturers.
| Connection Type | Threaded |
|---|---|
| Diaphragm Compatible Material | Santoprene |
| Diaphragm Material | Santoprene |
| Fluid Inlet Size (in) | 1/2 |
| Fluid Inlet Thread Type | BSPT |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Type | BSPT |
| Fluid Section Material | Polypropylene |
| Manifold Configuration | Center Port |
OV-DFC666 Aluminium Santoprene Diaphragm 2″ BSP Fit Graco Pumps
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
It is not implied that any part listed is the product of these manufacturers.
Configuration Number:
2150A-A01AA2SPSPSPPT
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
Pumpkits® offers parts that fit Graco products, but they are not genuine Graco parts.
Repair Kits
PD0F600 – Kit, 2150 Seat, Santoprene
PD0F060 – Kit, 2150 Ball, Santoprene
PD0F006 – Kit, 2150 Diaphragm, Santoprene
P236273 – Kit, 2150 Air Valve
PD0F666 – Kit, 2150 Complete Fluid Repair Kit
- Max Flow Rate: 568 LPM
- Seats/Balls/Diaphragms: Santoprene/Santoprene/Santoprene
- Body Material: Aluminium
- Centre Section: Aluminium
- Fluid Oulet: 2″
- Thread: BSPT
- Air Inlet: 1/2″
- Max Solids: 6.3mm
OV-649132 PP PTFE Diaphragm End-Flange Fit Husky 1050 Pumps
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
It is not implied that any part listed is the product of these manufacturers.
Fluid Section Material: [P] Polypropylene
Pump Inlet/Outlet Size: 1050 – 1 inch, 50 gpm (25mm, 189 lpm)
Center Section: [P01C] Polypropylene Datatrak
Porting: [P2] Polypropylene End Flange ANSI/DIN
Seats: [SS] 316 SST
Balls: [PT] PTFE
Diaphragms: [PT] PTFE
Manifold O-Rings: [PT] PTFE
| Compatible Brands | GRACO® |
|---|---|
| DIAPHRAGM MATERIALS | PTFE |
| PUMP SIZE | 1″ |
| PORTING OPTIONS | END-Flange |
| SEAT MATERIALS | STAINLESS STEEL |
| WETTED MATERIAL | Polypropylene |
OV-DFC311 Aluminium PTFE Diaphragm 2″ BSP Fit GRACO Husky 2150
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
It is not implied that any part listed is the product of these manufacturers.
Configuration Number:
2150A-A01AA2SSPTPTPT
Repair Kits
D0F300 – Kit, 2150 Seat, 316 SST
D0F010 – Kit, 2150 Ball, PTFE
D0F001 – Kit, 2150 Diaphragm, PTFE
236273 – Kit, 2150 Air Valve
D0F311 – Kit, 2150 Complete Fluid Repair Kit
24V543 – Kit, 2150 Diaphragm Install Tool
| Compatible Brands | GRACO® |
|---|---|
| PUMP SIZE | 2″ |
| PORTING OPTIONS | BSP (Tapered) Threads |
| SEAT MATERIALS | STAINLESS STEEL |
| WETTED MATERIAL | ALUMINIUM |
| BALL MATERIALS | PTFE |
| DIAPHRAGM MATERIALS | PTFE |
OV-649117 PP Santoprene Diaphragm End-Flange Fit Husky 1050 Pumps
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
It is not implied that any part listed is the product of these manufacturers.
| Connection Type | End Flange ANSI/DIN Flange |
|---|---|
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Fluid Inlet Size (in) | 1 |
| Fluid Outlet Size (in) | 1 |
| Fluid Section Material | Polypropylene |
| Manifold Configuration | End Port |
OV-647082 Aluminum Santoprene Diaphragm 1″ BSP Fit Husky 1050 Pumps
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
It is not implied that any part listed is the product of these manufacturers.
Configuration Number:
1050A-A01AA2PPSPSPPT
Repair Kits
24B635 – Kit, 1050 Seat, Polypropylene
24B646 – Kit, 1050 Ball, Santoprene
24B628 – Kit, 1050 Diaphragm, Santoprene
24B768 – Kit, 1050 Air Valve
25A859 – Kit, 1050 Complete Fluid Repair Kit
15R676 – Kit, 1050 Diaphragm Install Tool
| Connection Type | Threaded |
|---|---|
| Ball Material | Santoprene |
| Diaphragm Material | Santoprene |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | BSPT |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | BSPT |
| Fluid Section Material | Aluminum |
| Manifold Configuration | End Port, Center Port |
OV-DBC666 Aluminum Santoprene Diaphragm 1.5″ BSP Fit Graco Husky 1590
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
It is not implied that any part listed is the product of these manufacturers.
Part Number: DBC666
Configuration Number:
1590A-A01AA2SPSPSPPT
Repair Kits
D0B600 – Kit, 1590 Seat, Santoprene
D0B060 – Kit, 1590 Ball, Santoprene
D0B006 – Kit, 1590 Diaphragm, Santoprene
236273 – Kit, 1590 Air Valve
D0B666 – Kit, 1590 Complete Fluid Repair Kit
24V543 – Kit, 1590 Diaphragm Install Tool
| Compatible Brands | GRACO® |
|---|---|
| PUMP SIZE | 1.5″ |
| WETTED MATERIAL | ALUMINIUM |
| PORTING OPTIONS | BSP (Tapered) Threads |
| SEAT MATERIALS | SANTOPRENE |
| BALL MATERIALS | SANTOPRENE |
| DIAPHRAGM MATERIALS | Santoprene |
OV-651032 SS PTFE Diaphragm 1″ BSP Fit Graco husky1050
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
It is not implied that any part listed is the product of these manufacturers.
Part Number: P651032
Configuration Number:
1050S-A01AS2SSPTPTPT
Old “D” Graco Number: D7D311
Repair Kits
24B637 – Kit, 1050 Seat, 316 SST
24B645 – Kit, 1050 Ball, PTFE
24B627 – Kit, 1050 Diaphragm, PTFE
24B768 – Kit, 1050 Air Valve
25A856 – Kit, 1050 Complete Fluid Repair Kit
15R676 – Kit, 1050 Diaphragm Install Tool
| Connection Type | Threaded |
|---|---|
| Ball Material | PTFE |
| Diaphragm Material | PTFE |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Thread Type | BSPT |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Type | BSPT |
| Fluid Section Material | SS |
| Manifold Configuration | END Port |
OV-647109 Aluminum PTFE Diaphragm 1″ BSP Fit Husky 1050 Pumps
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
It is not implied that any part listed is the product of these manufacturers.
Configuration Number:
1050A-A01AA2SSPTPTPT
Old “D” Graco Number: D7C311
Repair Kits
24B637 – Kit, 1050 Seat, 316 SST
24B645 – Kit, 1050 Ball, PTFE
24B627 – Kit, 1050 Diaphragm, PTFE
24B768 – Kit, 1050 Air Valve
25A856 – Kit, 1050 Complete Fluid Repair Kit
15R676 – Kit, 1050 Diaphragm Install Tool
| Connection Type | Threaded |
|---|---|
| Ball Material | PTFE |
| Diaphragm Material | PTFE |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Thread Gender | Female |
| Fluid Inlet Thread Type | BSPT |
| Fluid Outlet Size (in) | 1 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | BSPT |
| Fluid Section Material | Aluminum |
| Manifold Configuration | End Port, Center Port |
OV-D5B916 PP Santoprene Diaphragm 0.5″ BSP Fit Graco Husky 515
Completely interchangeable with GRACO pump parts
GRACO® is a registered trademark of Graco Inc
OVZO2006® offers parts that fit Graco products, but they are not genuine Graco parts.
It is not implied that any part listed is the product of these manufacturers.
Configuration Number:515P-P01AP4PPPTSPPT
| Connection Type | Threaded |
|---|---|
| Ball Material | PTFE |
| Diaphragm Material | Santoprene |
| Fluid Inlet Size (in) | 1/2 |
| Fluid Inlet Thread Type | BSPT |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Type | BSPT |
| Fluid Section Material | Polypropylene |
| Manifold Configuration | Center Port |
İLGİLİ ÜRÜNLER
GRACO®PARTS
196385, SANTOPRENE, 190209, BUNA, 187715, HYTREL, 190754, 15F914, 15R028, Overmoulded Neoprene, 16E199, Backup, 189537, 183542, 189536, 194212, GEOLAST, 15R025, 188857, 189296, 15R023, 15R029, EPDM, 194214, 189426, 191402, PTFE, 188606, 15K312, 24F398, Diaphragm, Kit, 15R027, FKM/Viton, 16E198, 15B500, 190149, 188605, 15K311, 15B312, 108909, 108839, 330839, 15B313, 187716, 108273, 15R022, 330218, 16M742, 15R026, 189295, 190839, 15B499
VERDERAIR®PARTS
P819.6596 VALVE-BALLS PTFE FIT VERDERAIR PUMPS, P819.4357 VALVE-BALLS PTFE FIT VERDERAIR PUMPS, P819.4394 VALVE-BALLS PTFE FIT VERDERAIR PUMPS, P819.4446 VALVE-BALLS PTFE FIT VERDERAIR PUMPS, P819.4326 VALVE-BALLS SANTOPRENE FIT VERDERAIR PUMPS, P819.4361 VALVE-BALLS SANTOPRENE FIT VERDERAIR PUMPS, P819.4398 VALVE-BALLS SANTOPRENE FIT VERDERAIR PUMPS, P819.4449 VALVE-BALLS SANTOPRENE FIT VERDERAIR PUMPS, P819.7127 VALVE-BALLS BUNA FIT VERDERAIR PUMPS, P819.7125 VALVE-BALLS BUNA FIT VERDERAIR PUMPS, P819.4450 VALVE-BALLS BUNA FIT VERDERAIR PUMPS, P819.7128 VALVE-BALLS FKM FIT VERDERAIR PUMPS, P819.7126 VALVE-BALLS FKM FIT VERDERAIR PUMPS, P819.7124 VALVE-BALLS FKM FIT VERDERAIR PUMPS, P819.4415 VALVE-BALLS FKM FIT VERDERAIR PUMPS, P819.6598 VALVE-BALLS SANTOPRENE FIT VERDERAIR PUMPS, P819.4402 Diaphragm PTFE Fit VERDERAIR VA25, P819.4364 Diaphragm PTFE Fit VERDERAIR VA40, P819.4329 Diaphragm PTFE Fit VERDERAIR VA50, P819.4453 Diaphragm PTFE Fit VERDERAIR VA15 VA20, P819.4274 Air Valve Repair Kit FIT VERDERAIR VA25 VA40 VA50, P819.4278 Gasket Santoprene FIT VERDERAIR VA25 VA40 VA50, P819.7132 DIAPHRAGM FKM FIT VERDERAIR VA40, P819.4322 VALVE BALLS PTFE FIT VERDERAIR PUMPS PARTS, P819.7120 DIAPHRAGM BUNA FIT VERDERAIR VA50, P819.7119 DIAPHRAGM BUNA FIT VERDERAIR VA40, P819.6601 DIAPHRAGM SANTOPRENE FIT VERDERAIR VA80, P819.4414 DIAPHRAGM SANTOPRENE FIT VERDERAIR VA15, P819.4403 DIAPHRAGM SANTOPRENE FIT VERDERAIR VA25, P819.4365 DIAPHRAGM SANTOPRENE FIT VERDERAIR VA40, P819.4328 DIAPHRAGM SANTOPRENE FIT VERDERAIR VA50, P819.7129 VALVE-BALLS BUNA FIT VERDERAIR PUMPS
WILDEN®PARTS
P15-3859-13 Air Control Spool PS15 Fit Wilden Parts, 08-1010-52-06 Diaphragm Nitrile Fit Wilden Pumps, 04-2039-03 Air Valve Assembly SST Fit Wilden Parts, P01-2008-07 Air Valve Assembly Brass Fit Wilden Pumps, P04-5005-20 Chamber Liquid PP Fit Wilden Pumps, P04-3681-20 Air Chamber Pro-Flo PP Fit Wilden Pumps, P08-4600-01 Outer Piston Aluminum Fit Wilden Pumps, P04-5030-20 Discharge Manifold ANSI PP Fit Wilden Pumps, P04-5090-20 Inlet Manifold ANSI PP Fit Wilden Pumps, P04-2259-01 Air Valve Spool Assy Fit Wilden Pumps, 15-1022-15 Diaphragm Geolast Fit Wilden Parts, 15-1022-56 Diaphragm Hytrel Fit Wilden Pumps, 08-1011-55 Diaphragm PTFE Fit Wilden H800, P04-1022-57 Diaphragm EZ-Install FDA Fit Wilden Pumps, P04-1325-52 Gasket NBR Fit WILDEN Pumps, P02-5001-20-400 Liquid Chamber Polypropylene Fit Wilden Pumps,
